Hexa-Flex All Axis Wrist Joint

Hexa-Flex Modular Joint System

Wrist Joint Front Page_edited.png
Modular Arm First Page_edited.png

Now expanding clinical evaluation and strategic partnerships.

ChatGPT Image Jan 23, 2026, 06_17_14 PM.png

Hexa-Flex All Axis Wrist Joint

Hexa-Flex All Axis Wrist Joint

ChatGPT Image Jan 23, 2026, 06_17_14 PM.png

​

Coming Soon - Hexa-Flex All Axis Wrist Joint

Wrist Joint for Modular Joint System

Wrist for Traditional Lamination Socket

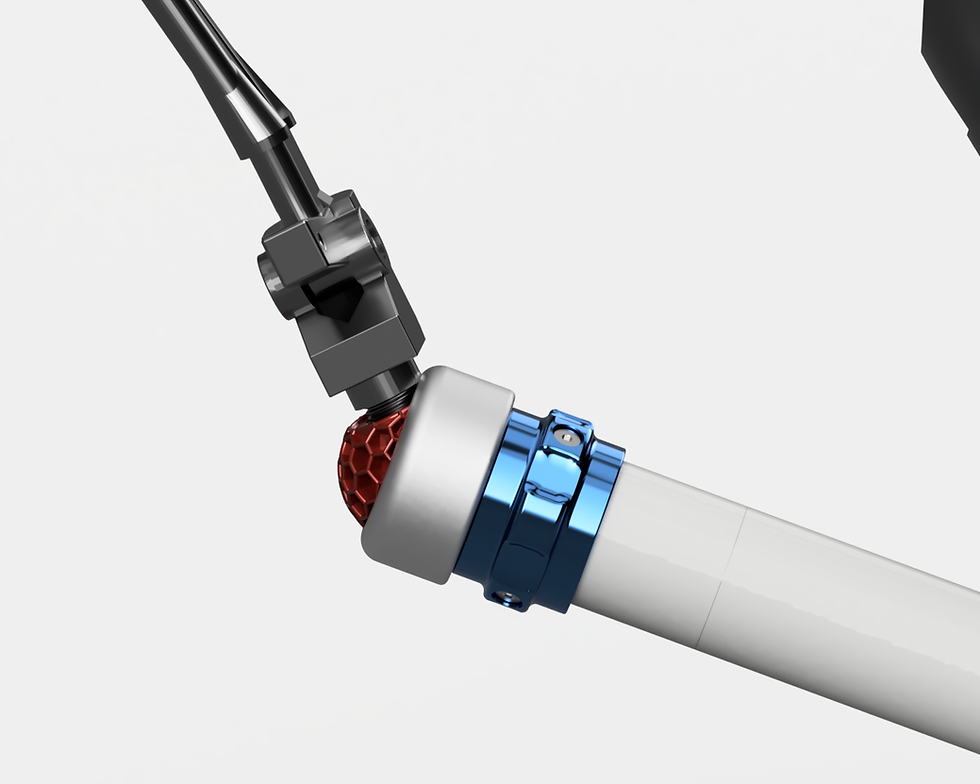

Using the same patent-pending multi-directional interlocking hexagonal ball interface, a corresponding wrist joint component was developed to provide adjustable mechanical positioning and secure locking of attached grips or tools across multiple axes. The assembly allows angular adjustment between 0 and 45 degrees around a full 360-degree central axis, after which the attached device may be rotated 360 degrees around the newly selected axis for additional positioning flexibility. A notched geometry permits extended articulation of up to approximately 70 degrees in one direction to enable closer positioning relative to the body. The wrist joint also includes a free-swing configuration that allows unrestricted rotation within the spherical socket when unlocked. This wrist component is compatible with both the Hexa-Flex Modular System and traditional lamination-style body-powered forearms, and it may be removed from either configuration for servicing or maintenance. The 35 mm hexagonal ball lamination-style wrist joint is currently designed to interface with 50 mm and 54 mm sockets.  Future renditions are being developed for smaller sizes.

ChatGPT Image Jan 23, 2026, 06_17_14 PM.png

Check Out the Gallery for more photos and videos

ChatGPT Image Jan 23, 2026, 06_17_14 PM.png

The Hexa-Flex Advantage

ChatGPT Image Jan 23, 2026, 06_17_14 PM.png

The Hexa-Flex Arm is a modular mechanical joint system featuring a patent-pending design that uses a hexagonal ball interface paired with an open-faced handle. This configuration allows adjustable multi-axis positioning through a set of internal locking pins that are disengaged via a pull-actuated control knob. When disengaged, the handle can be repositioned smoothly around the hexagonal ball interface. Releasing the control knob re-engages the locking pins to secure the forearm component at a selected angle. The control knob may also be held in an open position to allow a free-swinging configuration for mechanical flexibility.

The Hexa-Flex is engineered as a modular mechanical system that allows joints, forearm sections, adapters, and prehensor interfaces to be added or removed as needed. This modular architecture supports a wide range of mechanical configurations for attaching tools, grips, or other non-medical accessories for different use scenarios.

The Hexa-Flex is constructed with a focus on durability and low mass, using a 3D-printed sintered aluminum body with a DuraCoat™ surface finish for wear resistance and aesthetic customization. The assembly weighs approximately 9.7 ounces* and incorporates stainless steel hardware to enhance structural strength and resistance to environmental exposure, including incidental contact with moisture**, depending on configuration and use conditions.

* Shown Joint only.  Does not include the weight of lightweight forearms or adapters.

** Fresh Water only.  Salt water may cause oxidation if exposed for long periods of time.

Hexa-Flex Modular Joint Picture_edited_e
ChatGPT Image Jan 23, 2026, 06_17_14 PM.png

Attachments and Accessories

Elbow Rest_edited.jpg

Elbow Rest

Slide mount 2_edited_edited.jpg

Forearm Accessory Mount

New_Extention_Adapter_2025-Jun-13_12-34-41AM-000_CustomizedView13727702092_jpg_edited.jpg

Forearm/Terminal Device Connectors

Wrist Adapters.png

Other Mfg's Wrist Adapters

Cell phone holder_edited.jpg

Cell Phone or Tool Magnetic Mount

Forearm Lengths.png

Forearm Lengths

Lamination_35mm_Wrist_Joint_Hex_Ball_2025-Jun-12_09-47-08PM-000_CustomizedView952700676_pn

Lamination Adapters


Custom Attachments
